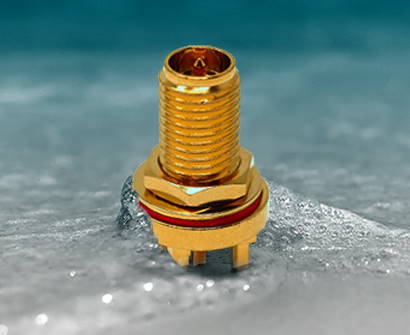

SMA Vertical Jack Reverse Polarity (RP) PCB Mount With O-ring IP67/IP68

Sample & Quote

SMA Vertical Jack Reverse Polarity (RP) PCB Mount With O-ring IP67/IP68

SPECIFICATION

Status
Active
SMA
SMA
Reverse Polarity Jack
Reverse Polarity Jack
PCB
PCB MOUNT
IP67/IP68
IP67/IP68
Vertical
Vertical
With O-ring
With O-ring
Female
Female
3GHz
Up to 3GHz
Through Hole
Through Hole

TECHNICAL DRAWING

PDF format technical drawing for RFPC-SMA17-FN

3D MODELS

All 3D Model files associated with this series are displayed below.

RFPC-SMA17-FN - rev1.2
3D Model for RFPC-SMA17-FN

DOCUMENTATION

All documentation associated with RFPC-SMA17-FN

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
