CH03-AL

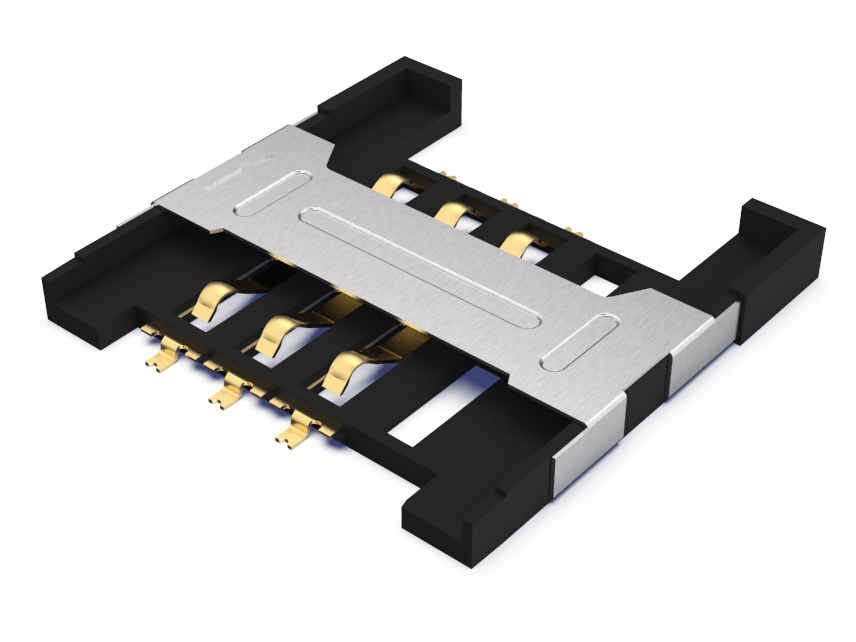

6 or 8 Contact, Mini 2FF, Push-Pull SIM Card Connector

Sample & Quote

6 or 8 Contact, Mini 2FF, Push-Pull SIM Card Connector

SPECIFICATION

Status
Active
Mini 2FF
Mini 2FF
Push-Pull
Push-Pull
DurabilityImageAlt
5,000 Cycles
ProfileImageAlt
1.80mm Profile
Without
Without Switch
6 or 8
6 or 8 Contact
Without locating peg
Without locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

PDF format technical drawing for CH03-AL

3D MODELS

All 3D Model files associated with this series are displayed below.

CH03-AL060-0BR - rev1.1
3D Model for CH03-AL060-0BR
CH03-AL080-0BR - rev1.1
3D Model for CH03-AL080-0BR

DOCUMENTATION

All documentation associated with CH03-AL

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
SPECIFICATION
DOWNLOAD .PDF
