CH03-AA-B

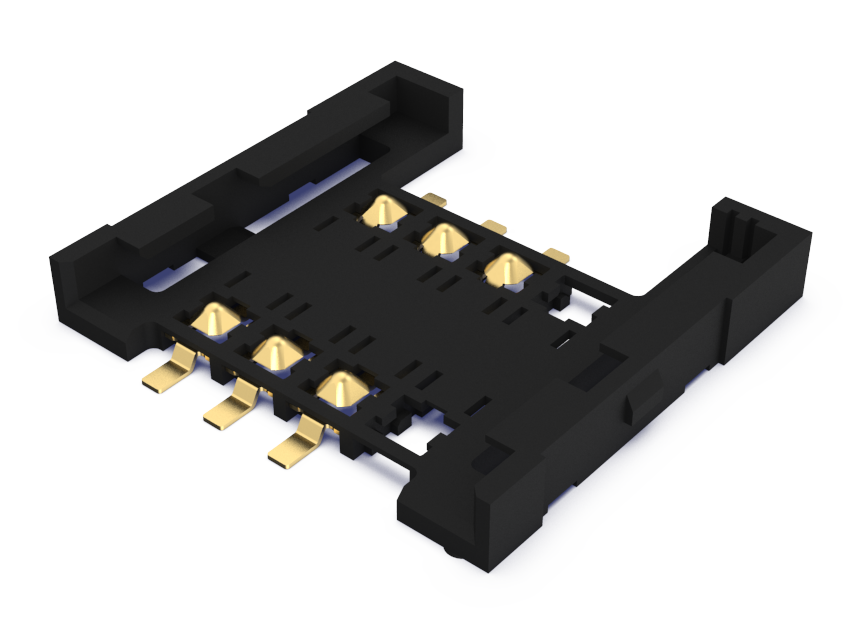

6 or 8 Contact, Mini 2FF, Push-Pull SIM Card Connector

Sample & Quote

6 or 8 Contact, Mini 2FF, Push-Pull SIM Card Connector

SPECIFICATION

Status
Active
Mini 2FF
Mini 2FF
Push-Pull
Push-Pull
DurabilityImageAlt
10,000 Cycles
ProfileImageAlt
2.40mm Profile
Without
Without Switch
6 or 8
6 or 8 Contact
Optional locating peg
Optional locating peg
Tape & Reel, Tube
Packaging:
Tape & Reel, Tube

TECHNICAL DRAWING

PDF format technical drawing for CH03-AA-B

3D MODELS

All 3D Model files associated with this series are displayed below.

CH03-AA-B - CH03-AA060-BAX-X - rev1.9
3D Model for CH03-AA-B - CH03-AA060-BAX-X
CH03-AA-B - CH03-AA080-BBX-X - rev1.9
3D Model for CH03-AA-B - CH03-AA080-BBX-X

DOCUMENTATION

All documentation associated with CH03-AA-B

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
SPECIFICATION
DOWNLOAD .PDF
