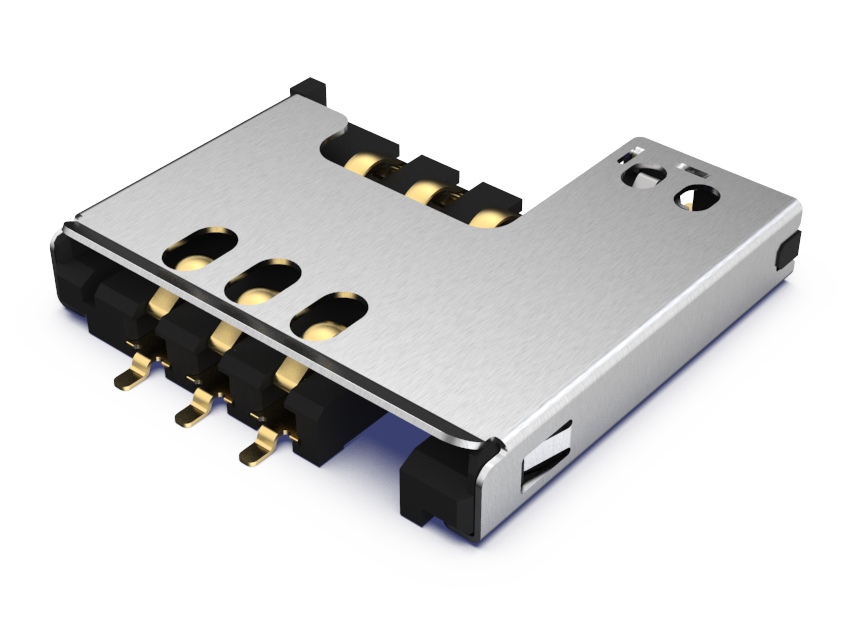

6 Contact, Mini 2FF, Push-Pull SIM Card Connector
Active

CH03-AJ

6 Contact, Mini 2FF, Push-Pull SIM Card Connector

SPECIFICATION

Mini 2FF
Card Type
Push-Pull
SIM Type
Normally Open or Normally Closed
Switch Circuit
Optional
Switch Label
Tape & Reel
SIM Packaging
Optional locating peg
Locating Peg
6
SIM Contacts
5,000
SIM Durability (in cycles)

PRODUCT RESOURCES

Technical Drawing
Download .PDF
Specification
Download .PDF
Product Change Notice
PCN CH03-AJ
2016-01-16
Version 1.3
Download .PDF

TECHNICAL DRAWING

If you have any issues with the PDF viewer below, download the PDF drawing here.
