CH03-GB

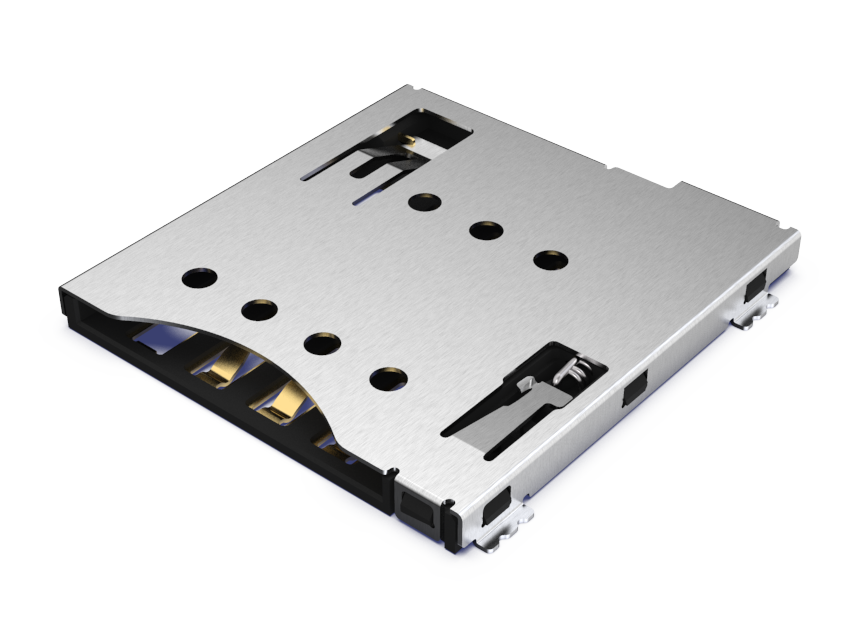

6 or 8 Contact, Micro 3FF, Push-Push SIM Card Connector

Sample & Quote

6 or 8 Contact, Micro 3FF, Push-Push SIM Card Connector

SPECIFICATION

Status
Active
Micro 3FF
Micro 3FF
Push-Push
Push-Push
DurabilityImageAlt
1,500 Cycles
ProfileImageAlt
1.50mm Profile
With
With Switch
Normally Closed
Normally Closed Switch Circuit
6 or 8
6 or 8 Contact
Without locating peg
Without locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

PDF format technical drawing for CH03-GB

3D MODELS

All 3D Model files associated with this series are displayed below.

CH03-GB060-ABR - rev1.1
3D Model for CH03-GB060-ABR
CH03-GB080-ABR - rev1.1
3D Model for CH03-GB080-ABR

DOCUMENTATION

All documentation associated with CH03-GB

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
