CH03-DD-A

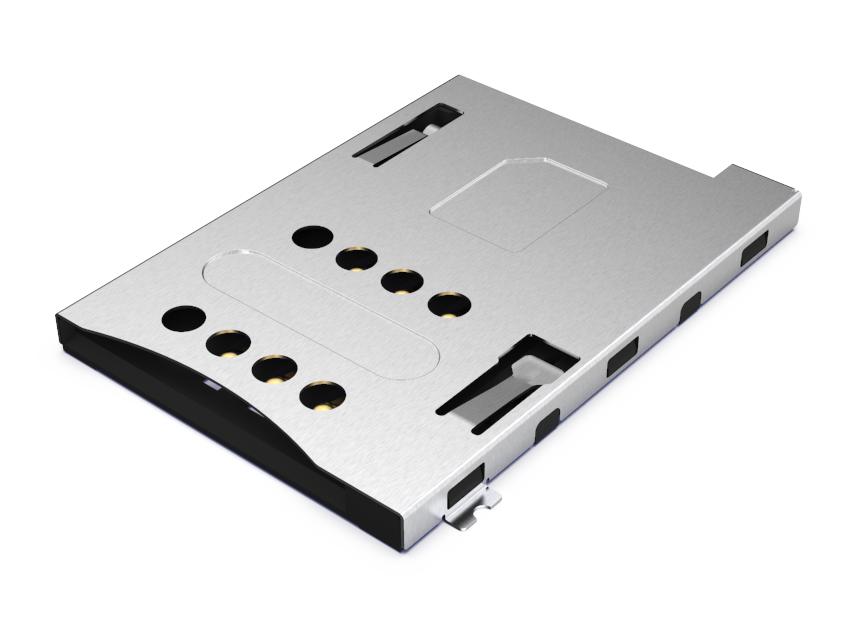

6 or 8 Contact, Mini 2FF, Push-Push SIM Card Connector

Sample & Quote

6 or 8 Contact, Mini 2FF, Push-Push SIM Card Connector

SPECIFICATION

Status
Active
Mini 2FF
Mini 2FF
Push-Push
Push-Push
DurabilityImageAlt
5,000 Cycles
ProfileImageAlt
1.90mm Profile
With
With Switch
Normally Closed
Normally Closed Switch Circuit
6 or 8
6 or 8 Contact
Optional locating peg
Optional locating peg

TECHNICAL DRAWING

PDF format technical drawing for CH03-DD-A

DOCUMENTATION

All documentation associated with CH03-DD-A

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
SPECIFICATION
DOWNLOAD .PDF
