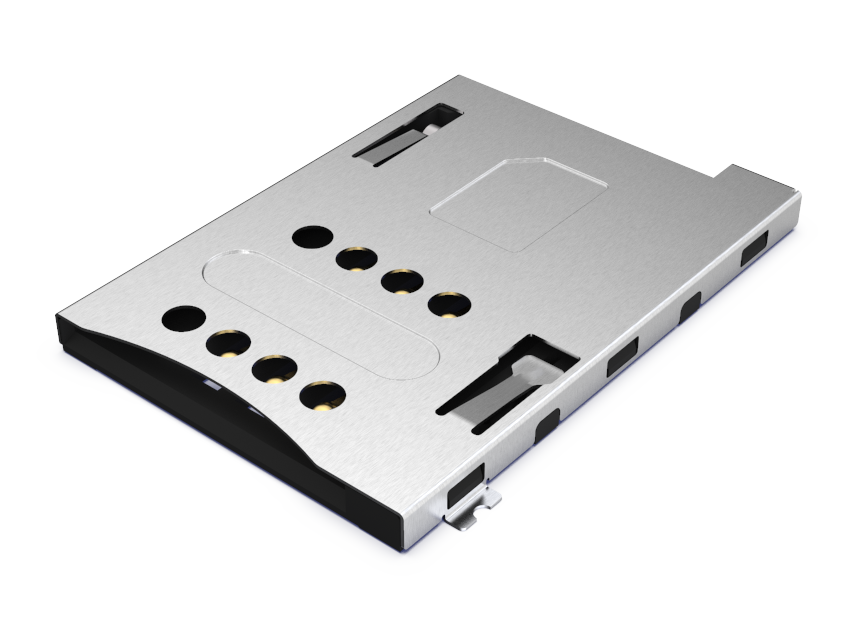

6 or 8 Contact, Mini 2FF, Push-Push SIM Card Connector

Active

CH03-DD-B

6 or 8 Contact, Mini 2FF, Push-Push SIM Card Connector

Sample & Quote Technical drawing Documention

SPECIFICATION

Mini 2FF

Card Type

Push-Push

SIM Type

Without

Switch Label

Without locating peg

Locating Peg

6 or 8

SIM Contacts

5,000

SIM Durability (in cycles)

PRODUCT RESOURCES

Technical Drawing

Specification

TECHNICAL DRAWING

If you have any issues with the PDF viewer below, download the PDF drawing here.

Download Drawing
