CH03-KB

6 Contact, Nano 4FF, Push-Pull SIM Card Connector

Sample & Quote

6 Contact, Nano 4FF, Push-Pull SIM Card Connector

SPECIFICATION

Status
Active
Nano 4FF
Nano 4FF
Push-Pull
Push-Pull
DurabilityImageAlt
1,500 Cycles
ProfileImageAlt
1.35mm Profile
Without
Without Switch
6
6 Contact
Optional locating peg
Optional locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

DOWNLOAD
PDF format technical drawing for CH03-KB
Download Drawing

3D MODELS

All 3D Model files associated with this series are displayed below.

CH03-KB060-HAR - rev1.1
3D Model for CH03-KB060-HAR
Powered by OEM Secrets Logo

DOCUMENTATION

All documentation associated with CH03-KB

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF

GALLERY

Images and videos associated with CH03-KB

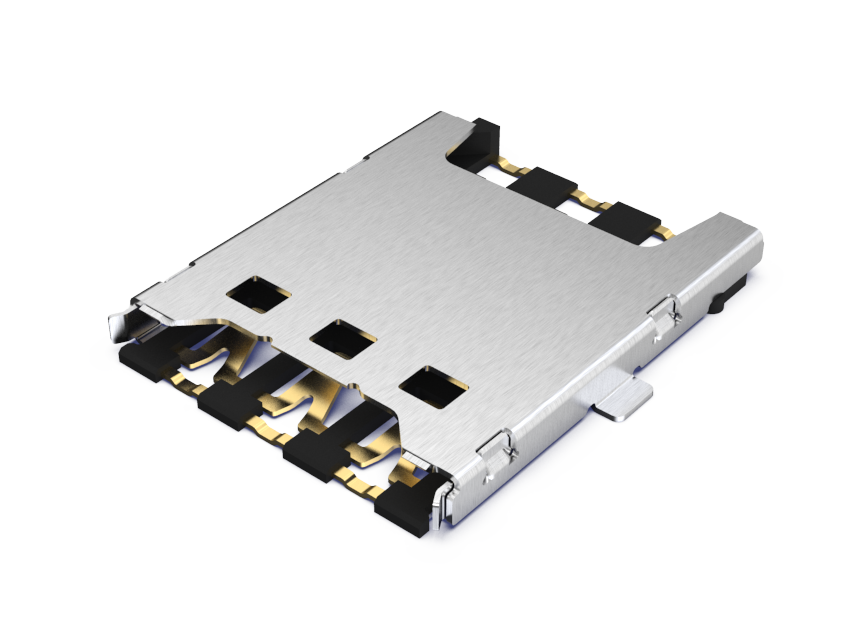

ch03-kb060-har - render
6 Contact, Nano 4FF, Push-Pull SIM Card Connector
