CH03-HB

6 Contact, Micro 3FF, Hinged SIM Card Connector

Sample & Quote

6 Contact, Micro 3FF, Hinged SIM Card Connector

SPECIFICATION

Status
Active
Micro 3FF
Micro 3FF
Hinged
Hinged
DurabilityImageAlt
5,000 Cycles
ProfileImageAlt
1.75mm Profile
Without
Without Switch
6
6 Contact
Without locating peg
Without locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

PDF format technical drawing for CH03-HB

3D MODELS

All 3D Model files associated with this series are displayed below.

DOCUMENTATION

All documentation associated with CH03-HB

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF

GALLERY

Images and videos associated with CH03-HB

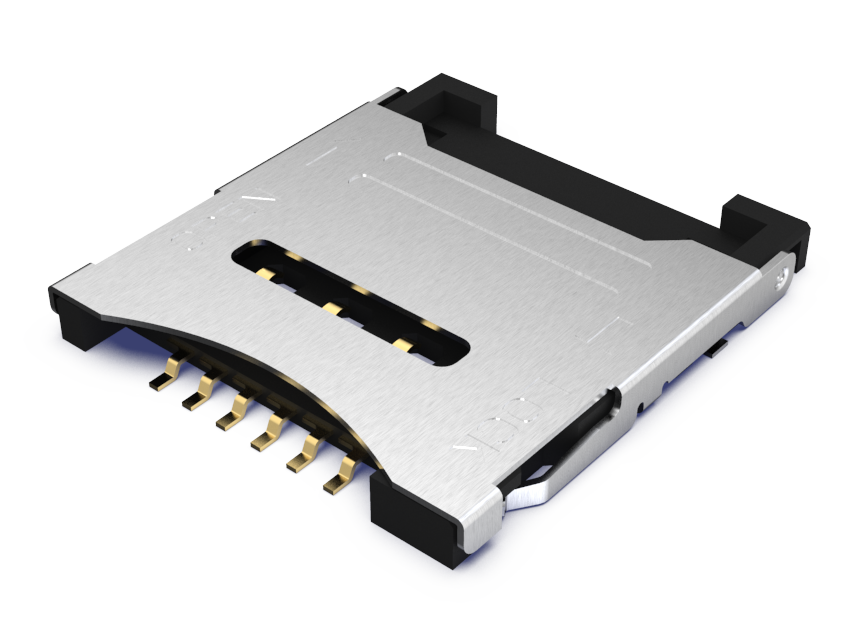

ch03-hb060-0br - render
6 Contact, Micro 3FF, Hinged SIM Card Connector
