CH03-FB

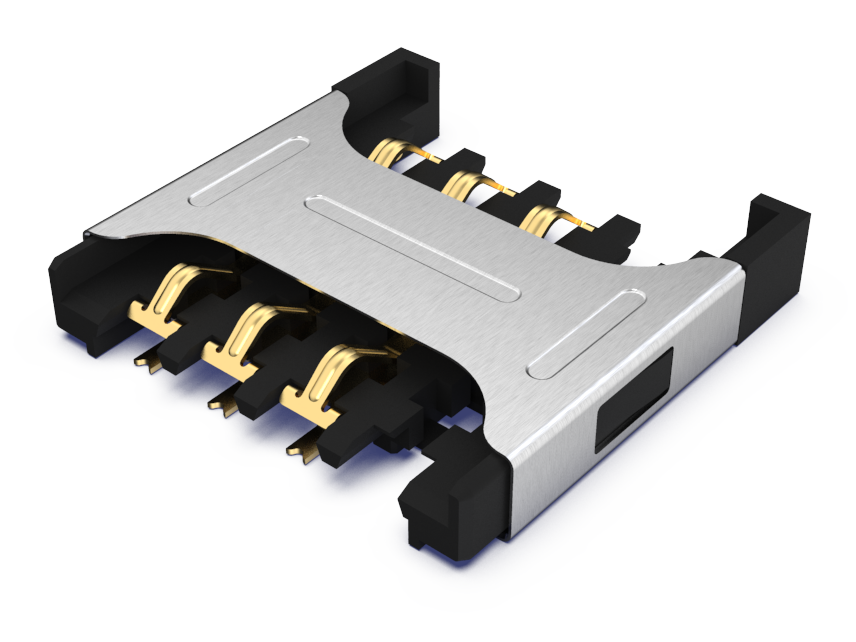

6 or 8 Contact, Micro 3FF, Push-Pull SIM Card Connector

Sample & Quote

6 or 8 Contact, Micro 3FF, Push-Pull SIM Card Connector

SPECIFICATION

Status
Active
Micro 3FF
Micro 3FF
Push-Pull
Push-Pull
DurabilityImageAlt
5,000 Cycles
ProfileImageAlt
2.40mm Profile
Without
Without Switch
6 or 8
6 or 8 Contact
Without locating peg
Without locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

DOWNLOAD
PDF format technical drawing for CH03-FB
Download Drawing

3D MODELS

All 3D Model files associated with this series are displayed below.

CH03-FB060-0BR - rev1.3
3D Model for CH03-FB060-0BR
CH03-FB080-0BR - rev1.3
3D Model for CH03-FB080-0BR
Powered by OEM Secrets Logo

DOCUMENTATION

All documentation associated with CH03-FB

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
SPECIFICATION
DOWNLOAD .PDF

GALLERY

Images and videos associated with CH03-FB
CH03-FB060-0BR - Render
6 or 8 Contact, Micro 3FF, Push-Pull SIM Card Connector
CH03-FB080-0BR - Render
6 or 8 Contact, Micro 3FF, Push-Pull SIM Card Connector
