CH03-BE

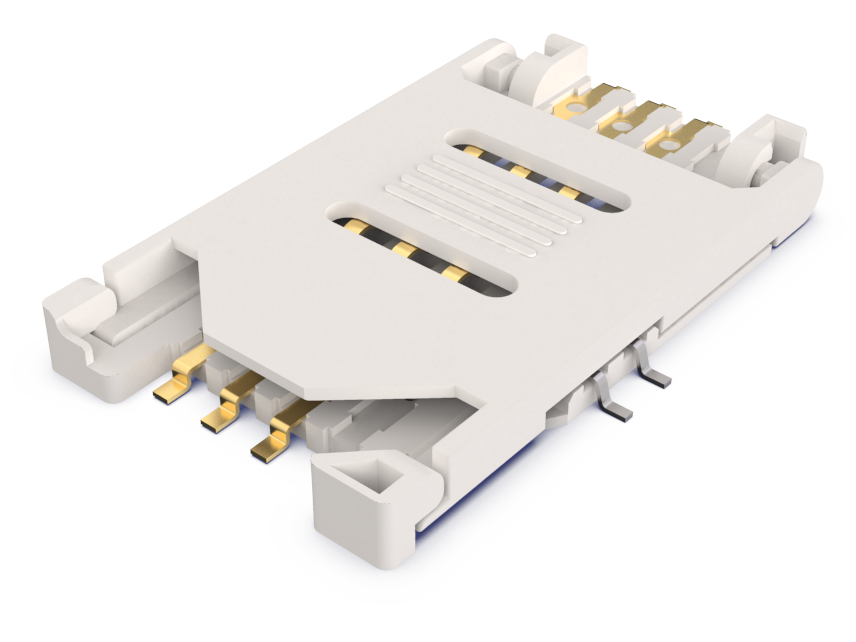

6 or 8 Contact, Mini 2FF, Hinged SIM Card Connector

Sample & Quote

6 or 8 Contact, Mini 2FF, Hinged SIM Card Connector

SPECIFICATION

Status
Active
Mini 2FF
Mini 2FF
Hinged
Hinged
DurabilityImageAlt
10,000 Cycles
ProfileImageAlt
3.00mm Profile
With
With Switch
Normally Open
Normally Open Switch Circuit
6 or 8
6 or 8 Contact
Optional locating peg
Optional locating peg
Tape & Reel
Packaging:
Tape & Reel

TECHNICAL DRAWING

PDF format technical drawing for CH03-BE
Powered by OEM Secrets Logo

DOCUMENTATION

All documentation associated with CH03-BE

TECHNICAL

TECHNICAL DRAWING
DOWNLOAD .PDF
