Perfect Planar Mating

The table and illustrations below show GradConn’s range of PCB co-planar connector mating solutions. Whatever your application GradConn offer connectors for end to end PCB mating in through hole and surface mount, with options for single, dual and triple row in pitch spacing 1.00mm (.039”) thru 2.54mm (.100”).

Clicking the ‘view’ button allows you to see the combination of perfectly height matched connectors. If you seek design advice our connector experts are ready to help you, please contact us.

Pitch Number of
Rows
Number of
Contacts
Connector
Style
Header Socket Height above
PCB
Mount Type View Parts
1.00mm 1 02 to 35 2 Piece BB02-YN BB02-WF 1.50mm Surface Mount View
1.27mm 1 01 to 50 U Shaped BB02-5B N/A 2.50mm Through Hole View
2.00mm 1 02 to 40 U Shaped BB02-1F N/A 2.00mm Through Hole View
2.00mm 1 02 to 40 2 Piece BB02-FB BB02-RK 2.00mm Through Hole View
2.00mm 2 04 to 80 2 Piece BB02-FD BB02-RL 2.00mm Through Hole View
2.00mm 1 02 to 40 2 Piece BB02-FK BB02-RW 2.00mm Surface Mount View
2.00mm 2 02 to 80 U-Shaped BB02-2F N/A 4.00mm Through Hole View
2.00mm 2 04 to 80 2 Piece BB02-RH BB02-RX 4.00mm Surface Mount View
2.00mm 3 09 to 120 2 Piece BB02-RR BB02-RQ 6.00mm Through Hole View
2.54mm 1 02 to 40 2 Piece BB02-HH BB02-JS 2.50mm Surface Mount View
2.54mm 1 02 to 40 2 Piece BB02-HA BB02-JE 2.54mm Through Hole View
2.54mm 1 02 to 40 2 Piece BB02-TK BB02-JE 2.54mm Through Hole View
2.54mm 1 02 to 40 U-Shaped BB02-1H N/A 2.50mm Through Hole View
2.54mm 2 02 to 80 U-Shaped BB02-2H N/A 5.00mm Through Hole View
2.54mm 2 04 to 80 2 Piece BB02-TH BB02-LE 5.00mm Through Hole View

Planar Board to Board Connector Information

Two Piece Connector Solutions
Perfect Planar Mating

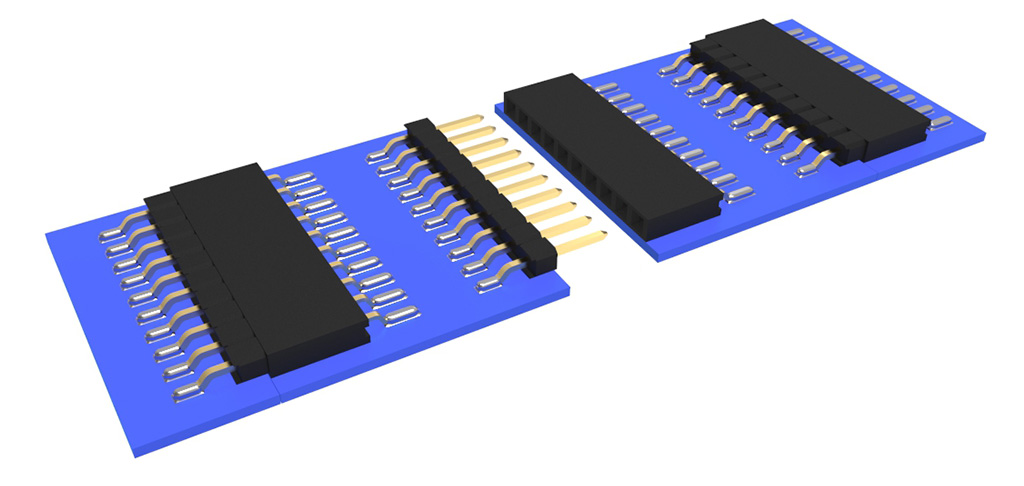

Horizontal board to board connectors Perfect Planar mating
Non perfect planar mating – SMT Socket with leg on each side leaves gap with exposed pins
Non perfect horizontal board to board mating Perfect Planar mating
U Shaped Connector Solutions
Single in line - "Socketed" example
U Shaped Connector to two sockets U shaped to PCB mating
Dual in line - "board in" example
U Shaped Connector to PCB U shaped to PCB mating

LED Lighting Connectors

GradConn's experience with customers in the LED lighting industry has led to the development of a comprehensive range of right angle to right angle PCB connectors. From tiny pitch solutions with 1.5mm (.059”) height to triple row solution with 120 contacts and everything in-between GradConn have a solution for your planar application.

SMT Solid state lighting connectors (SSL) are available between 1.00mm to 2.54mm pitch, from 2 to 120 contacts, SMD (surface mount design) and thru hole with single, dual and triple row options. All GradConn connectors withstand IR reflow temperatures and are fully RoHS compliant.

Surface mount options have proved popular with customers connecting LED strips in Solid state lighting applications; at just 1.5mm height the 1.00mm pitch planar connectors are perfect where space is critical. If your design calls for a wider pin diameter the 2.54mm HH and JS combination offers a more robust option for LED strip designs.

U-Shaped one piece headers are available in single in line or dual in line and provide an economical option for a one piece 'fit and forget' solution as the connectors may be soldered direct into the PCB.

Alternatively if access to plug co-planar PCB’s together is limited then a U-Shaped header may be plugged from above into a vertical socket on each PCB.

All U shaped connectors offer customisable space between pins and customisable pin lengths.
